P. 9

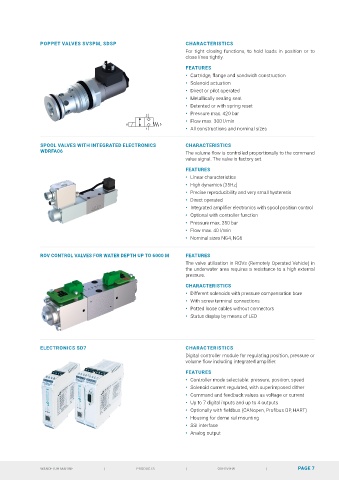

POPPET VALVES SVSPM, SDSP CHARACTERISTICS
For tight closing functions, to hold loads in position or to
close lines tightly.
FEATURES
• Cartridge, flange and sandwich construction
• Solenoid actuation
• Direct or pilot operated
• Metallically sealing seat
• Detented or with spring reset
• Pressure max. 420 bar
2
• Flow max. 300 l/min
a b
1 • All constructions and nominal sizes
SPOOL VALVES WITH INTEGRATED ELECTRONICS CHARACTERISTICS
WDRFA06 The volume flow is controlled proportionally to the command
value signal. The valve is factory set.
FEATURES
• Linear characteristics
• High dynamics (35Hz)
• Precise reproducibility and very small hysteresis
• Direct operated
• Integrated amplifier electronics with spool position control
• Optional with controller function
• Pressure max. 350 bar
• Flow max. 40 l/min
• Nominal sizes NG4, NG6
ROV CONTROL VALVES FOR WATER DEPTH UP TO 6000 M FEATURES
The valve utilisation in ROVs (Remotely Operated Vehicle) in
the underwater area requires a resistance to a high external
pressure.
CHARACTERISTICS
• Different solenoids with pressure compensation bore
• With screw terminal connections
• Potted loose cables without connectors
• Status display by means of LED
ELECTRONICS SD7 CHARACTERISTICS
Digital controller module for regulating position, pressure or
volume flow including integrated amplifier.
FEATURES
• Controller mode selectable: pressure, position, speed
• Solenoid current regulated, with superimposed dither
• Command and feedback values as voltage or current
• Up to 7 digital inputs and up to 4 outputs
• Optionally with fieldbus (CANopen, Profibus DP, HART)
• Housing for dome rail mounting
• SSI interface
• Analog output
WANDFLUH MARINE | PRODUCTS | OVERVIEW | PAGE 7
