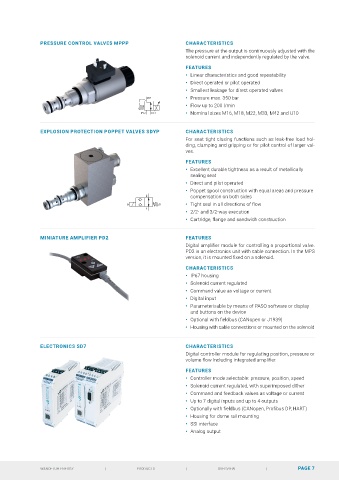

PRESSURE CONTROL VALVES MPPP CHARACTERISTICS
The pressure at the output is continuously adjusted with the
solenoid current and independently regulated by the valve.
FEATURES
• Linear characteristics and good repeatability
• Direct operated or pilot operated
• Smallest leakage for direct operated valves
• Pressure max. 350 bar
(A) 1
• Flow up to 200 l/min
• Nominal sizes M16, M18, M22, M33, M42 and U10
(P) 2 (T) 3
EXPLOSION PROTECTION POPPET VALVES SDYP CHARACTERISTICS
For seat tight closing functions such as leak-free load hol-
ding, clamping and gripping or for pilot control of larger val-
ves.
FEATURES
• Excellent durable tightness as a result of metallically
sealing seat
• Direct and pilot operated
• Poppet spool construction with equal areas and pressure
2 compensation on both sides
a b • Tight seal in all directions of flow
1
• 2/2- and 3/2-way execution
• Cartridge, flange and sandwich construction
MINIATURE AMPLIFIER PD2 FEATURES
Digital amplifier module for controlling a proportional valve.
PD2 is an electronics unit with cable connection. In the MPS
version, it is mounted fixed on a solenoid.
CHARACTERISTICS
• IP67 housing
• Solenoid current regulated
• Command value as voltage or current
• Digital input
• Parameterisable by means of PASO software or display
and buttons on the device
• Optional with fieldbus (CANopen or J1939)
• Housing with cable connections or mounted on the solenoid
ELECTRONICS SD7 CHARACTERISTICS
Digital controller module for regulating position, pressure or
volume flow including integrated amplifier.
FEATURES
• Controller mode selectable: pressure, position, speed
• Solenoid current regulated, with superimposed dither
• Command and feedback values as voltage or current
• Up to 7 digital inputs and up to 4 outputs
• Optionally with fieldbus (CANopen, Profibus DP, HART)
• Housing for dome rail mounting
• SSI interface
• Analog output
WANDFLUH ENERGY | PRODUCTS | OVERVIEW | PAGE 7
