Pressure compensator valve sandwich construction U_FSA06

Flow control valves, pressure compensation valves , fine feed / fast approach units NG6

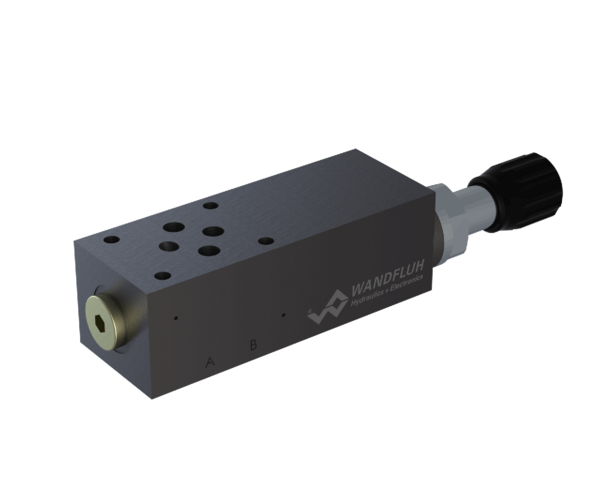

Pressure compensator valve with fixed setting in sandwich design with interface NG6 acc. to ISO 4401-03 with 4 ports. Available with 2-way and 3-way operation. The steel body of the sandwich valve is phosphatized and the cartridge body is zinc coated for corrosion protection. The load is sensed in line A or B with an incorporated shuttle valve.

Switching valves Pressure compensator valve sandwich construction U_FSA06

Pressure compensating valve
Sandwich construction

  • 2- and 3-way operation
  • Qmax = 25 l/min
  • pmax = 350 bar

Application

Pressure compensator sandwich valves are usually stacked underneath proportional directional valves. They are used in open loop circuits. 2-way pressure compensators may be installed in parallel pressure lines with a common power source to operate actuators individually. For each actuator the full pump pressure is available. Only one 3-way pressure compensator can be installed in a system.
