2/2-way built-in valves NG40
2-way slip-in cartridge valves are hydraulic logic elements which are installed in control blocks with standardised cavities according to ISO 7368. Their simple and compact construction enables very large volume flows with low pressure loss. These properties reduce power loss and increase efficiency. With the modular construction of the individual valve parts and the use of appropriate cover and pilot valve combinations, it is possible to obtain a large number of different functions.

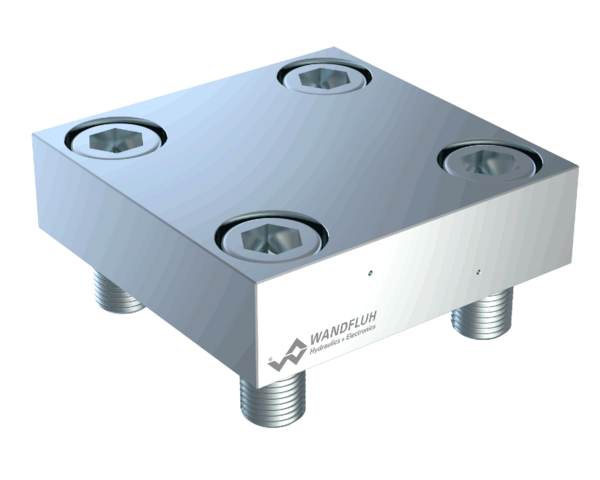

Control cover for check function
- pmax = 350 bar
2-way slip-in cartridge valves require a corresponding control cover for full function. The main function of this control cover is to hold the slip-in cartridge valve in the cavity. In addition, the cover can be equipped with an additional pilot valve and an orifice.
