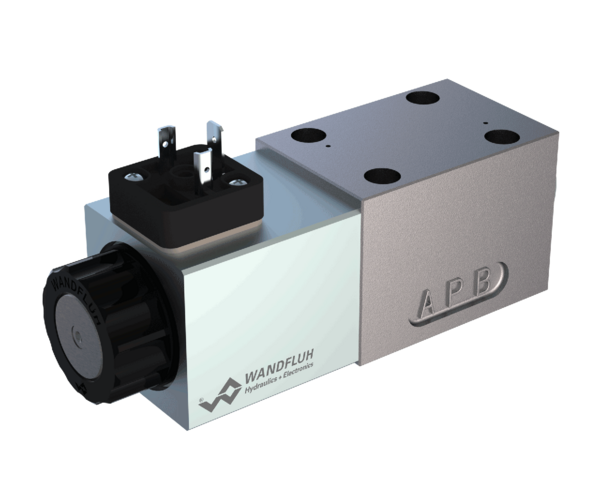

Solenoid operated spool valve (slip-on coil) WDMFA06_L8_M

Solenoid operated spool valves direct operated NG6

Direct operated solenoid spool valve with 4 connections in 5 chamber design. With the solenoids deenergised, the spool is held in the center position by the spring (4/3), or switched back to the offset position (4/2). Precise spool fit, low leakage, long service life time. Spool made from hardened steel, body from high quality hydraulic cast steel. Wide range of standard and special voltages.

Switching valves Solenoid operated spool valve (slip-on coil) WDMFA06_L8_M
  • Flange construction
  • 4/3-way with spring centred mid position
  • 4/2-way with spring reset
  • Qmax = 80 l/min
  • pmax = 350 bar

Application

Spool valves are mainly used for controlling direction of movement and stopping of hydraulic cylinders and motors. The direction of movement is determined by the position of the spool and its symbol. Switching performance limits and leakage of the valves must be taken into account when designing the system. Solenoid operated spool valves are suitable for machine tools and handling systems of any kind. ​ ​ ​ ​ ​ ​
