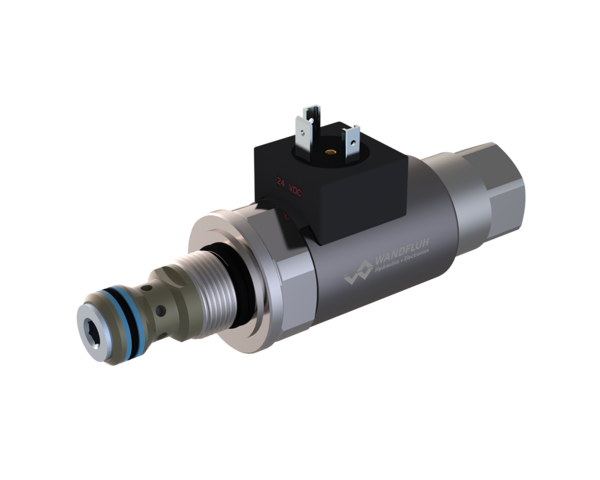

Solenoid poppet valve cartridge, stainless SDSPM22_K9

Poppet valves M22x1,5

Direct operated 2/2- and 3/2-way solenoid poppet valve in screw-in cartridge construction for cavity according to ISO 7789. By means of the pressure tight switching solenoid, the pressure compen­sated, metallically sealing poppet spool is either opened or closed. The seat spool guide is sealed by means of an O-ring. ​ ​ ​ ​ ​

Switching valves Solenoid poppet valve cartridge, stainless SDSPM22_K9

Solenoid operated poppet valve cartridge
stainless​

  • Direct operated
  • 2/2- and 3/2-way
  • Qmax = 40 l/min
  • pmax = 350 bar

Application

Wandfluh solenoid operated poppet valve cartridges are used ­where tight closing functions are essential like leakage-free load holding, clamping or gripping. The stainless execution is especially suitable for the use in wet and salty environment. For machining the cartridge cavity in steel and aluminum blocks, cavity tools are available (hire or purchase). Please refer to the data sheets in register 2.13. ​ ​ ​ ​
